Default RDP Port 3389 – Is It Leaving You Exposed? Secure Your Remote Desktop

Microsoft’s Remote Desktop Protocol (RDP) is an incredibly powerful tool. It allows you to remotely access and control your Windows computer from anywhere in the world — as if you were sitting right in front of it. However, many users overlook the security risks associated with the Default RDP Port (3389), which is often targeted by hackers for unauthorized access. This convenience is a game-changer for remote work, system administration, and accessing files on the go.

But with this great power comes a critical question: how secure is it? While RDP is a built-in feature of Windows, its default settings might be leaving a digital back door to your system wide open. It’s important to note that RDP is not enabled by default on all systems and may be blocked by the Windows Firewall. However, for users who have enabled it for public access, relying on the standard configuration could be a significant and often overlooked security risk.

This article will reveal three surprising and impactful facts about RDP security that every user needs to understand. By the end, you’ll know why the default settings are a problem, how to fix them, and how to verify that your system is properly secured.

2. Takeaway 1: Your Default RDP Port is a Public Security Risk

The Default Setting is a Well-Known Welcome Mat for Attackers

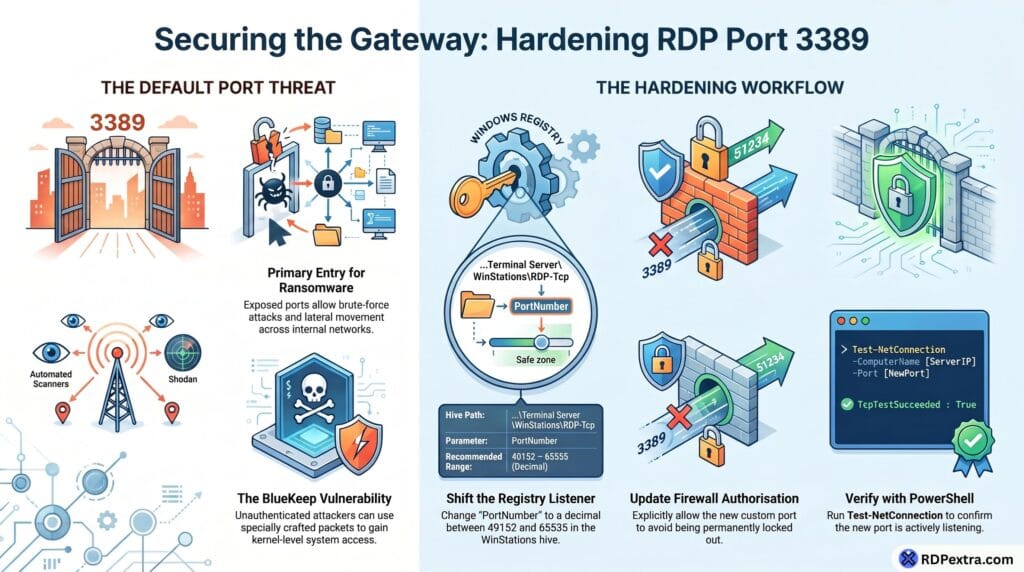

Remote Desktop Protocol (RDP) is a Microsoft protocol that allows you to remotely control the screen content of your Windows computer. To establish this connection over a network, RDP typically uses TCP or UDP port 3389 by default. Herein lies the problem: publicly exposing port 3389 over the internet “poses a security threat.” Because this port number is universally known, malicious actors and automated bots constantly scan the internet for systems with an open port 3389, making it a primary target for unauthorized access attempts.

3. Takeaway 2: The Solution is Buried Deep in the Windows Registry

Securing Your Port Requires a Trip to the Windows Registry

Changing this critical security setting isn’t as simple as toggling an option in a standard settings menu. Instead, the configuration is stored in the Windows Registry—a core database that holds low-level settings for the operating system and its applications. To secure your RDP port, you must edit this database directly.

Here are the steps to change the default RDP port:

1. Open the Registry Editor: Press the [Windows] + [R] keys simultaneously to open the Run dialog. Type Regedit and press [Enter].

2. Navigate to the RDP Key: In the Registry Editor, navigate to the following exact path: Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp.

3. Change the Port Number: In the right-hand pane, find the value named PortNumber and double-click it. Change the base to Decimal, then enter a new, non-standard port number (ideally between 49152 and 65535) to avoid conflicts with other common services. Click “OK” to save the change.

This process highlights a crucial reality of system security: some of the most important configurations for protecting your computer are hidden away from the average user, requiring specific technical knowledge to find and adjust. Exercise caution when editing the Registry, as incorrect changes can affect system stability.

4. Takeaway 3: You Can Verify Your Security with a Single Command

A Simple PowerShell Command Can Confirm You’re Secure

After making a change in the Registry, it is essential to verify that it has been applied correctly. Making a change is only half the battle; confirming it has taken effect is what truly secures the system. Fortunately, you can confirm that your new port is open and responsive with a quick and powerful test using Windows PowerShell.

Here is how to verify your new configuration:

• First, open PowerShell with administrative rights. Press the [Windows] + [X] keyboard shortcut, then press the [A] key. On older Windows versions, select Command Prompt (Administrator) from this menu instead.

• Next, run the test command. Type tnc 192.168.178.2 -port 3389, but be sure to replace the example IP address (192.168.178.2) with your own PC’s IP address and replace 3389 with the new, custom port number you just configured.

• A successful result will show the value True next to the "TcpTestSucceeded:" field in the output. This confirms your computer is listening for RDP connections on the new, more secure port.

Conclusion: Beyond a Single Port

Securing your RDP port is a perfect example of how default settings, while convenient, are not always designed with maximum security in mind. By taking a few deliberate technical steps, you can significantly reduce your system’s exposure to common threats. Now that you’ve secured your remote access port, what other services on your machine have default configurations that deserve a second look?
