What Is DHCP? A Complete Guide to DHCP Servers and IP Address Management

What Is DHCP? DHCP (Dynamic Host Configuration Protocol) is a network management protocol that automatically assigns IP addresses and other network settings to devices connected to a network. In any network, devices need unique IP addresses to communicate with each other. Manually assigning IP addresses can be time-consuming and prone to errors. A DHCP server simplifies this process by dynamically allocating IP addresses, subnet masks, gateways, and DNS settings, ensuring efficient and reliable network connectivity.

A DHCP server automates the manner of assigning IP addresses, making sure that every device in the community receives a unique and legitimate configuration. But what the dhcp server, and the way it paints? Simply positioned, it’s a community service that dynamically allocates IP addresses, subnet mask, default gateways, and DNS settings to purchaser devices. This gets rid of the want for manual configuration and reduces network conflicts.

So, what does DHCP do? It simplifies network management by routinely dispensing and dealing with IP addresses. When a tool connects to the network, it sends a request to the DHCP server, which then assigns an available IP deal for a particular lease period. Once the lease expires, the tool can renew it or request a new one.

Understanding the role of dynamic IP address management is important for network administrators because it improves efficiency, minimizes address conflicts, and ensures reliable connectivity across devices. Whether in home environments, office networks, or large enterprise infrastructures, this technology helps maintain stable communication and simplifies overall network administration.

Components of DHCP

Dynamic Host Configuration Protocol (DHCP) is an essential network service that automates the assignment of IP addresses and other network configurations to devices. To function efficiently, DHCP relies on several key components, each playing a crucial role in managing IP allocation and communication within a network.

1. DHCP Server

The DHCP server is the central component responsible for assigning IP addresses to client devices. It maintains a pool of available IP addresses and allocates them dynamically to devices requesting a connection. The server also provides additional network configurations, such as subnet masks, default gateways, and DNS settings, ensuring seamless network communication.

2. DHCP Client

A DHCP client is any device (computer, smartphone, printer, etc.) that requests an IP address from the DHCP server. When a client joins the network, it sends a request to the DHCP server, which then assigns an available IP address along with necessary network parameters.

3. DHCP Relay Agent

A DHCP relay agent is used in networks where the DHCP server is located in a different subnet than the clients. Instead of having a DHCP server in each subnet, a relay agent forwards client requests to a central DHCP server, ensuring efficient IP address distribution across multiple network segments.

4. IP Address Pool

The IP address pool is a range of IP addresses managed by the DHCP server. When a client requests an IP address, the server assigns one from this pool. The pool is configured based on the network’s needs and can include dynamic, static, and reserved IP addresses.

5. Lease Time

Lease time defines the duration for which an IP address is assigned to a client. Once the lease period expires, the client must renew the lease or request a new IP address. This helps in efficient IP address management and prevents address exhaustion.

6. Subnet Mask and Gateway

Along with an IP address, the provides the subnet mask (which defines the network’s range) and the default gateway (which enables communication between different networks). These settings ensure proper routing and connectivity.

7. DNS Configuration

The DHCP server also assigns DNS (Domain Name System) settings, allowing devices to resolve domain names into IP addresses, facilitating internet access.

By understanding these components of DHCP, network administrators can efficiently manage IP address allocation, ensuring seamless communication and reducing manual configuration efforts.

DHCP’s IP Address Distribution Methods

The Dynamic Host Configuration Protocol (DHCP) is designed to automate the assignment of IP addresses to devices within a network. Depending on the network’s needs, DHCP servers can distribute IP addresses using different allocation methods. The three primary methods are dynamic allocation, automatic allocation, and static allocation. Each method serves a specific purpose and provides flexibility in managing network resources.

1. Dynamic Allocation

Dynamic allocation is the most commonly used method for IP address assignment. In this approach, the DHCP server assigns an IP address to a device for a specific lease period. When the lease expires, the device must either renew the lease or request a new IP address.

• This method ensures efficient utilization of IP addresses by reassigning them to new devices when they become available.
• It is widely used in offices, public Wi-Fi networks, and enterprise environments where devices frequently join and leave the network.
• Since IP addresses are assigned temporarily, it reduces the chances of address conflicts and simplifies network management.


2. Automatic Allocation

Automatic allocation works similarly to dynamic allocation, but with one key difference: once a DHCP server assigns an IP address to a device, it permanently reserves that address for future use by the same device.

• This method is useful in networks where devices are frequently reconnected but do not require fixed IP addresses.
• It helps reduce the need for manual IP configuration while ensuring that a device gets the same IP address each time it connects.
• Automatic allocation is commonly used in corporate environments where employees frequently connect their devices to the same network.


3. Static Allocation (Manual Assignment)

Static allocation, also known as manual assignment or DHCP reservation, allows network administrators to assign a specific IP address to a device based on its MAC address. The DHCP server ensures that the device always receives the same IP address whenever it connects to the network.

• This method is ideal for servers, printers, and network devices that require fixed IP addresses for stable operation.
• It prevents IP conflicts and ensures reliable access to essential network resources.
• While offering better control, static allocation requires manual configuration, making it less practical for networks with a large number of dynamic devices.



How Does DHCP Work?

The Dynamic Host Configuration Protocol (DHCP) is a crucial networking service that automates the assignment of IP addresses and other configuration details to devices on a network. Instead of manually configuring each device, DHCP servers dynamically allocate IP addresses, ensuring efficient and conflict-free communication.

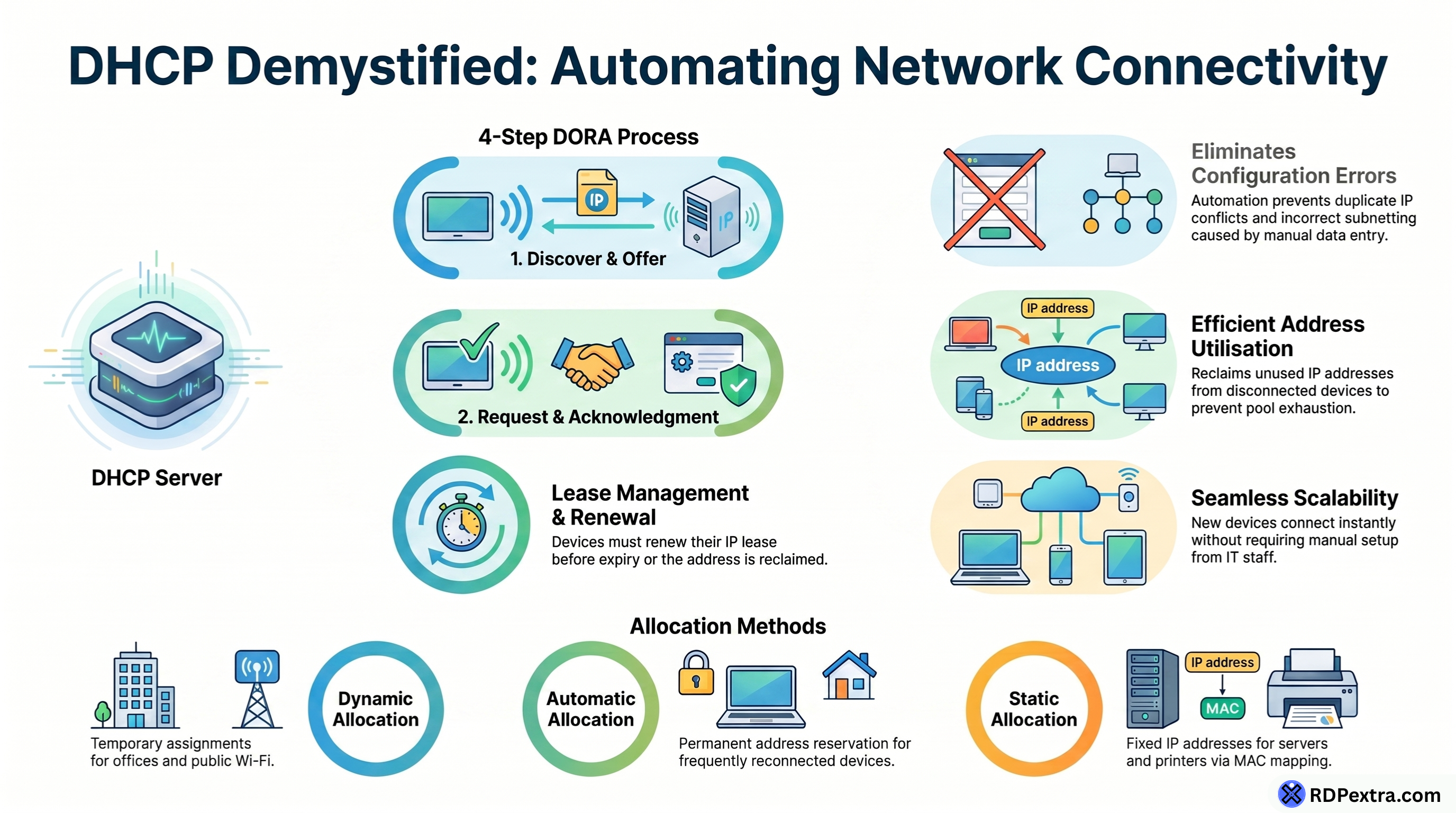

The DHCP Process

When a device (known as a DHCP client) connects to a network, it follows a structured process to obtain an IP address from the DHCP server. This process consists of four key steps:

1. DHCP Discover (Client to Server)

When a new device joins the network, it does not have an IP address. To request one, the device broadcasts a DHCP Discover message to the network. This message is sent to all available DHCP servers, asking for an IP address and configuration details.

2. DHCP Offer (Server to Client)

Upon receiving the DHCP Discover request, one or more DHCP servers respond with a DHCP Offer message. This offer contains:

• An available IP address
• Subnet mask
• Default gateway
• DNS server details
• Lease duration

If multiple DHCP servers send offers, the client typically accepts the first one it receives.

3. DHCP Request (Client to Server)

The client selects one of the received offers and sends a DHCP Request message back to the chosen DHCP server, confirming its acceptance of the provided IP address and configuration.

4. DHCP Acknowledgment (Server to Client)

The DHCP server finalizes the process by sending a DHCP Acknowledgment (DHCP ACK) message to the client. This message confirms the lease of the IP address and provides all necessary network settings. The client can now use the assigned IP address to communicate within the network.

Renewal and Lease Expiry

Every DHCP-assigned IP address comes with a lease period. Before the lease expires, the client sends a renewal request to extend the lease. If the client does not renew the lease, the DHCP server reclaims the IP address and assigns it to other devices as needed.

Why Should You Use DHCP Servers?

In any modern network, devices require unique IP addresses to communicate effectively. Manually assigning IP addresses can be time-consuming and prone to errors, making network management difficult. This is where a DHCP server comes into play. But what is a DHCP server, and why is it essential for efficient network management?

What Does a DHCP Server Do?

A DHCP server automates the assignment of IP addresses and other network configurations, such as subnet masks, default gateways, and DNS settings. Instead of manually configuring each device, the DHCP server dynamically allocates IP addresses, ensuring seamless connectivity and reducing administrative overhead.

Benefits of Using a DHCP Server

1. Automated IP Address Management

Manually configuring IP addresses for every device in a network is inefficient and prone to conflicts. A DHCP server eliminates this issue by dynamically assigning and managing IP addresses, ensuring that no two devices use the same address.

2. Reduces Network Configuration Errors

Incorrectly assigned IP addresses can lead to connectivity issues. With a DHCP server, the chances of human error are minimized, ensuring accurate and consistent IP address distribution.

3. Efficient IP Address Utilization

A DHCP server optimizes IP address allocation by reusing addresses when devices disconnect from the network. This is especially useful in large networks where devices frequently join and leave.

4. Simplifies Network Administration

For IT administrators, managing a network without DHCP can be tedious. A DHCP server streamlines the process by automating configurations, reducing manual work, and improving overall efficiency.

5. Supports Mobility and Scalability

As networks grow, the number of connected devices increases. With DHCP, adding new devices is seamless, making it ideal for enterprises, offices, and public Wi-Fi networks. Users can connect without requiring manual configuration.

6. Enhances Network Security

A DHCP server can be configured with security features such as IP address reservations and MAC address filtering, helping to restrict unauthorized devices from accessing the network.

Features of DHCP

In modern networking, efficient IP address management is essential to ensure seamless connectivity. Manually assigning IP addresses can be time-consuming and prone to errors. This is where DHCP (Dynamic Host Configuration Protocol) comes into play. But what is a DHCP server, and how does it enhance network management? A DHCP server automates the allocation of IP addresses and network settings, making network administration more efficient.

Key Features of DHCP

1. Automatic IP Address Assignment

One of the primary functions of a DHCP server is to automatically assign IP addresses to devices as they connect to the network. Instead of manually configuring each device, the DHCP server dynamically provides an available IP address, ensuring efficient address allocation.

2. IP Address Lease Management

A DHCP server assigns IP addresses for a specific lease period. When the lease expires, the device must renew the lease to retain the IP address. If a device disconnects and does not renew the lease, the DHCP server reclaims the IP and assigns it to a new device. This prevents IP address exhaustion.

3. Centralized Network Configuration

So, what does DHCP do to simplify network management? It centralizes the configuration of key network parameters such as:

• Subnet masks (to define network boundaries)
• Default gateways (to direct traffic)
• DNS server settings (to resolve domain names)

Instead of configuring these settings manually on each device, the DHCP server provides them automatically.

4. Dynamic and Static IP Address Allocation

A DHCP server supports both dynamic and static IP address assignments:

• Dynamic allocation: The DHCP server assigns an available IP address from its pool for a limited time.
• Static allocation (DHCP Reservation): A specific IP address is permanently assigned to a device based on its MAC address. This is useful for servers, printers, and network devices that need a fixed IP.


5. DHCP Relay for Large Networks

In enterprise environments, devices may be on different subnets from the DHCP server. A DHCP relay agent forwards DHCP requests across subnets, ensuring that all devices can receive IP addresses, even if the DHCP server is located elsewhere.

Conclusion

In today’s connected world, efficient IP address management is essential for maintaining reliable network communication. DHCP simplifies this process by automatically assigning network settings to devices, reducing manual work and minimizing configuration errors. From home networks to large enterprise environments, it helps improve efficiency, scalability, and overall network performance.

By automating address allocation and configuration management, this protocol allows administrators to focus on more important tasks while ensuring devices remain connected without conflicts. As technologies such as cloud computing, IoT, and remote work continue to grow, automated network management solutions will remain a key part of modern infrastructure. Understanding how this technology works can help organizations build more secure, reliable, and scalable networks for the future.
